Chapter 1. Getting started with OpenIMAJ using Maven

Apache Maven is a project management tool. Maven performs tasks such as automatic dependency management, project packaging and more. We strongly encourage anyone using OpenIMAJ to use Maven to get their own project started. We’ve even provided a Maven archetype for OpenIMAJ (basically a project template) that lets you get started programming with OpenIMAJ quickly.

[Tip] Tip

You can find out more about Apache Maven at http://maven.apache.org.

OpenIMAJ requires Maven 2 or 3; if you want to build OpenIMAJ from source you will need Maven 3. You can check if you have Maven installed already by opening a terminal (or DOS command prompt) and typing:

mvn -version

If Maven is found the, version will be printed. If the version is less than 2.2.1, or Maven was not found, go to http://maven.apache.org to download and install it. Once you’ve installed Maven try the above command to test that it is working.

To create a new OpenIMAJ project, run the following command:

mvn -DarchetypeGroupId=org.openimaj -DarchetypeArtifactId=openimaj-quickstart-archetype  -DarchetypeVersion=1.3.6  archetype:generate

Maven will then prompt you for some input. For the groupId, enter something that identifies you or a group that you belong to (for example, I might choose uk.ac.soton.ecs.jsh2 for personal projects, or org.openimaj for OpenIMAJ sub-projects). For the artifactId enter a name for your project (for example, OpenIMAJ-Tutorial01). The version can be left as 1.0-SNAPSHOT, and the default package is also OK. Finally enter Y and press return to confirm the settings. Maven will then generate a new project in a directory with the same name as the artifactId you provided.

The entire interaction with Maven should look something like this:

> mvn archetype:generate -DarchetypeGroupId=org.openimaj -DarchetypeArtifactId=openimaj-quickstart-archetype -DarchetypeVersion=1.3.6

[INFO] Scanning for projects...
[INFO]
[INFO] ------------------------------------------------------------------------
[INFO] Building Maven Stub Project (No POM) 1
[INFO] ------------------------------------------------------------------------
[INFO]
[INFO] >>> maven-archetype-plugin:3.0.0:generate (default-cli) > generate-sources @ standalone-pom >>>
[INFO]
[INFO] <<< maven-archetype-plugin:3.0.0:generate (default-cli) < generate-sources @ standalone-pom <<<
[INFO]
[INFO]
[INFO] --- maven-archetype-plugin:3.0.0:generate (default-cli) @ standalone-pom ---
[INFO] Generating project in Interactive mode
[INFO] Archetype repository not defined. Using the one from [org.openimaj:openimaj-quickstart-archetype:1.3.6] found in catalog remote
Define value for property 'groupId': uk.ac.soton.ecs.jsh2
Define value for property 'artifactId': openimaj-test-project
Define value for property 'version' 1.0-SNAPSHOT: :
Define value for property 'package' uk.ac.soton.ecs.jsh2: :
[INFO] Using property: openimajVersion = 1.3.6
Confirm properties configuration:
groupId: uk.ac.soton.ecs.jsh2
artifactId: openimaj-test-project
version: 1.0-SNAPSHOT
package: uk.ac.soton.ecs.jsh2
openimajVersion: 1.3.6
 Y: :
[INFO] ----------------------------------------------------------------------------
[INFO] Using following parameters for creating project from Archetype: openimaj-quickstart-archetype:1.3.6
[INFO] ----------------------------------------------------------------------------
[INFO] Parameter: groupId, Value: uk.ac.soton.ecs.jsh2
[INFO] Parameter: artifactId, Value: openimaj-test-project
[INFO] Parameter: version, Value: 1.0-SNAPSHOT
[INFO] Parameter: package, Value: uk.ac.soton.ecs.jsh2
[INFO] Parameter: packageInPathFormat, Value: uk/ac/soton/ecs/jsh2
[INFO] Parameter: package, Value: uk.ac.soton.ecs.jsh2
[INFO] Parameter: version, Value: 1.0-SNAPSHOT
[INFO] Parameter: groupId, Value: uk.ac.soton.ecs.jsh2
[INFO] Parameter: openimajVersion, Value: 1.3.6
[INFO] Parameter: artifactId, Value: openimaj-test-project
[INFO] Project created from Archetype in dir: /Users/jsh2/openimaj-test-project
[INFO] ------------------------------------------------------------------------
[INFO] BUILD SUCCESS
[INFO] ------------------------------------------------------------------------
[INFO] Total time: 47.710 s
[INFO] Finished at: 2017-09-05T09:44:15+01:00
[INFO] Final Memory: 15M/221M
[INFO] ------------------------------------------------------------------------
>


[Note] Overriding the OpenIMAJ version

Versions of the archetype after 1.0.5 automatically select the corresponding OpenIMAJ version. With all versions of the archetype, you can override this by setting the openimajVersion on the command-line with the -D argument.

The project directory contains a file called pom.xml and a directory called src. The pom.xml file describes all of the dependencies of the project and also contains instructions for packaging the project into a fat jar that contains all your project code and resources together with the dependencies. If you find that you need to add another library to your project, you should do so by editing the pom.xml file and adding a new dependency. The src directory contains the code for your project. In particular, src/main/java contains your java application code and src/test/java contains unit tests.

The default project created by the archetype contains a small hello world application. To compile and assemble the hello world application you cd into the project directory from the command line (replacing OpenIMAJ-Tutorial01 with the name of your project):

cd OpenIMAJ-Tutorial01

and run the command:

mvn assembly:assembly

This will create a new directory called target that contains the assembled application jar (the assembled jar is the one whose name ends with -jar-with-dependencies.jar). To run the application, enter:

java -jar target/OpenIMAJ-Tutorial01-1.0-SNAPSHOT-jar-with-dependencies.jar

The application will then run, and a window should open displaying a picture with the text hello world. Closing the window, or ctrl-c on the command line, will quit the application.

OpenIMAJ Hello World

1.1. Integration with your favourite IDE

We could now go ahead and start playing with the code in a text editor, however this really isn’t recommended! Using a good Integrated Development Environment (IDE) with auto-completion will make your experience much better -- particularly when it comes to managing imports.

Maven integrates with all the popular IDEs. The OpenIMAJ developers all use Eclipse so that is what we’re most familiar with, however we should be able to help getting it set up in a different IDE if you wish.

Integration with modern versions of Eclipse is quite simple, but you must have the Eclipse m2e plugin installed. If you're using one of the standard "Eclipse for Java Developers" provided by the Eclipse project, then you should be all set. Otherwise you'll first need to install the m2e plugin by following the instructions on the m2e website (http://www.eclipse.org/m2e/).

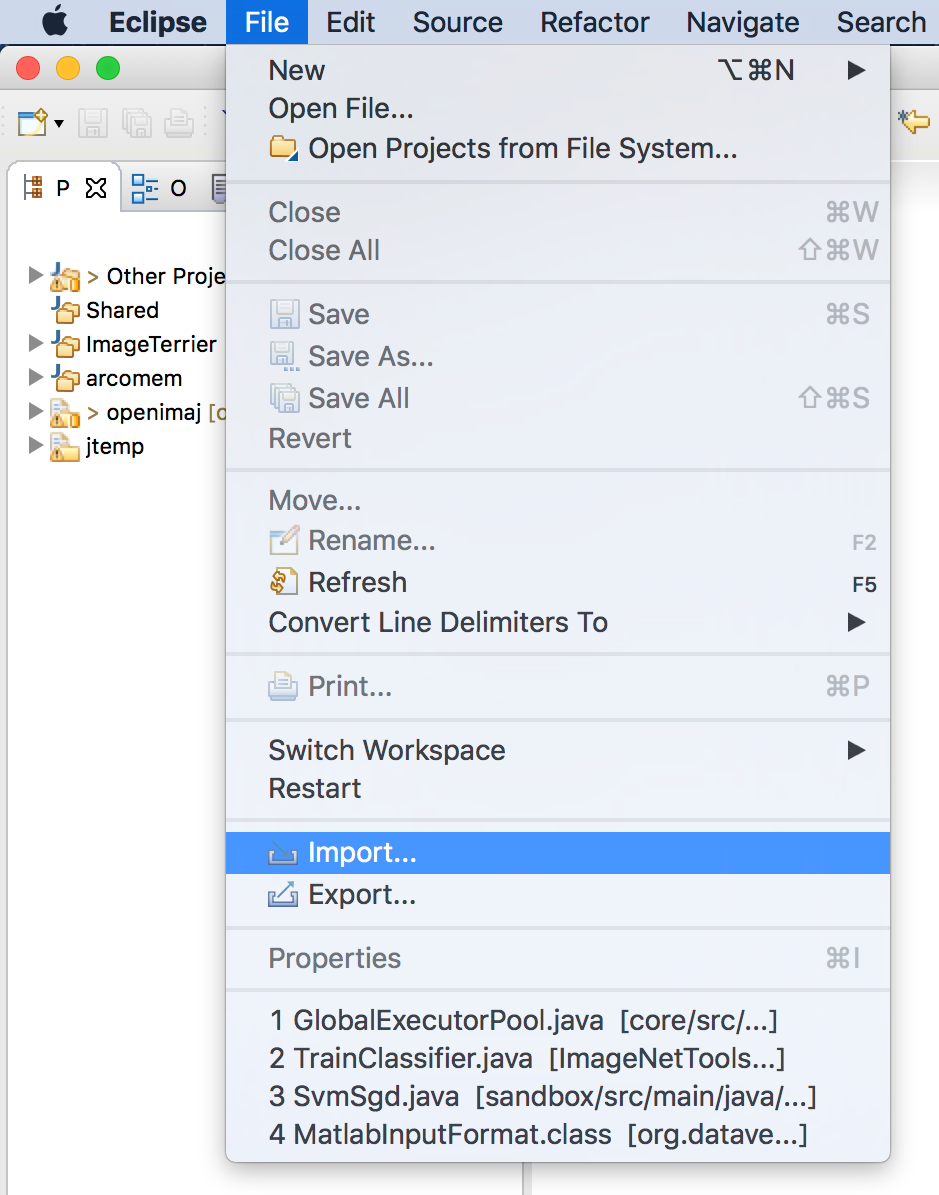

To import your Maven project from within Eclipse, select Import... from the File menu:

Eclipse import menu

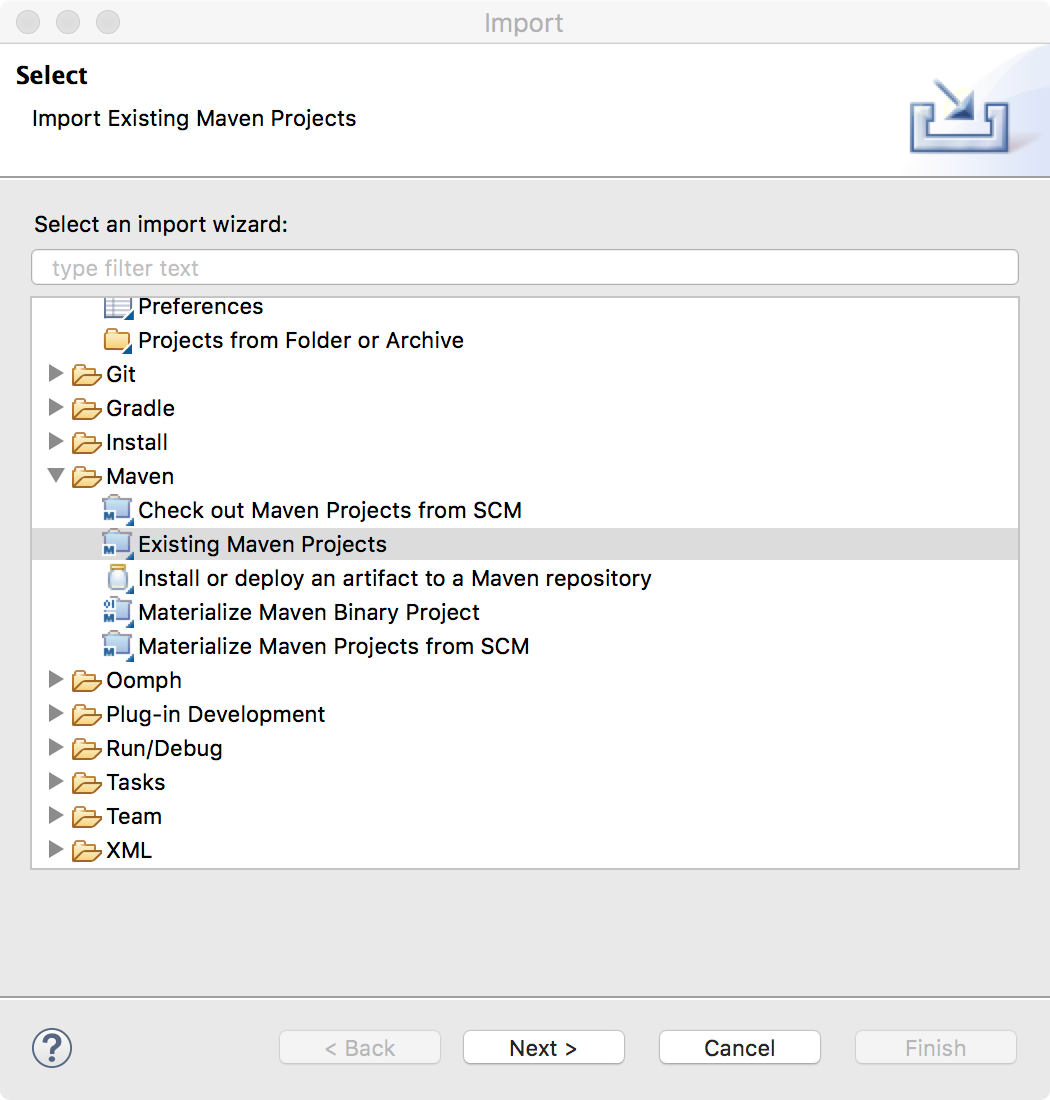

Choose Existing Maven Projects (inside the Maven folder):

Eclipse import dialog

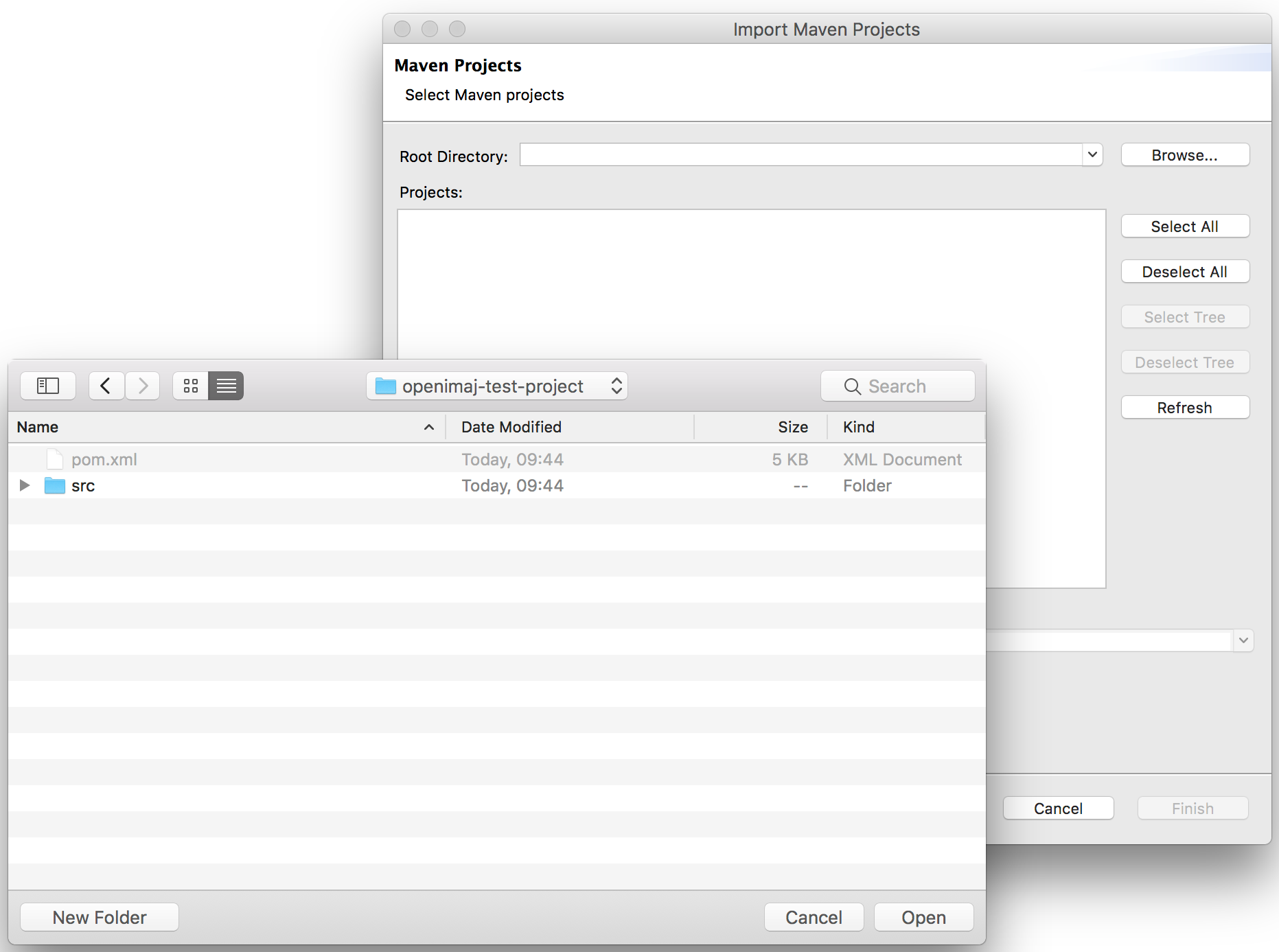

In the dialog that appears, click the Browse... and navigate to your project directory, and click Open:

Browsing for a Maven project

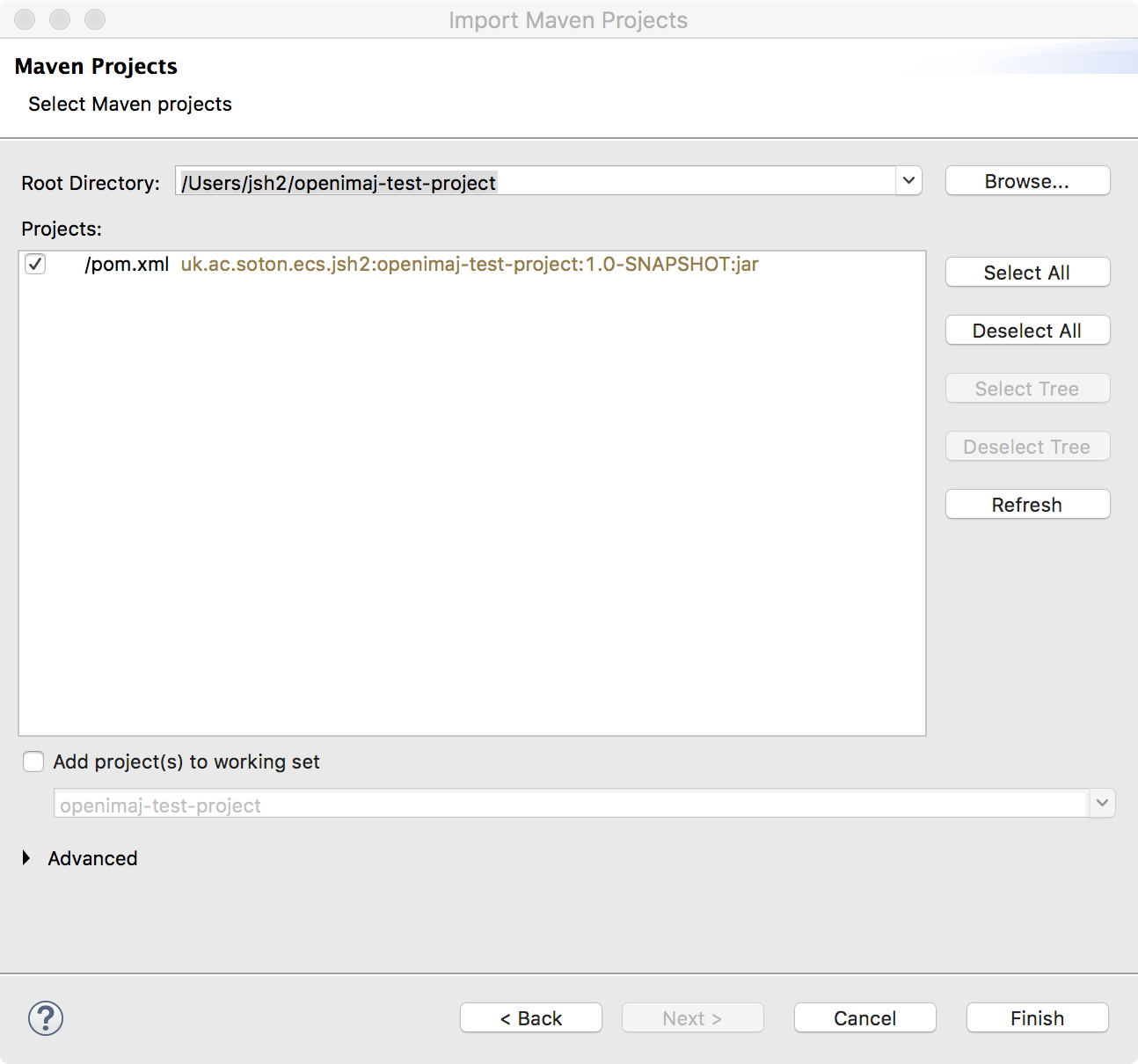

The project should now appear in the Import Maven Projects window:

Finishing Maven import

Finally click Finish. The project will then appear in the workspace and you’ll be able to look at the App.java file that was generated by the archetype.

Once you’ve opened the App.java file in Eclipse, you can right-click on it and select Run as > Java Application to run it from within Eclipse.

Eclipse Run as...
